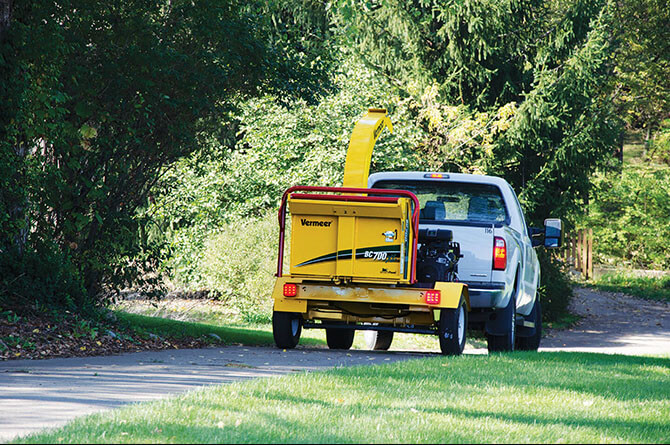

Vermeer continues to respond to the demands of the rental, landscape and tree care professionals with the BC700XL brush chipper.

Find A Dealer Request More Info
Vermeer continues to respond to the demands of the rental, landscape and tree care professionals with the BC700XL brush chipper. The smallest machine in the Vermeer brush chipper line, the BC700XL design is based on operator feedback and focuses on productivity advantage and ease of use. The brush chipper features a centrifugal clutch system, 25 hp (18.6 kW) Kohler EFI engine, bottom feed stop bar and Vermeer-exclusive SmartFeed feed-sensing control system. The new member of the chippers line offers the compact size operators are looking for and the performance they want to achieve a job efficiently.

Vermeer continues to respond to the demands of the rental, landscape and tree care professionals with the BC700XL brush chipper.

Vermeer continues to respond to the demands of the rental, landscape and tree care professionals with the BC700XL brush chipper. The smallest machine in the Vermeer brush chipper line, the BC700XL design is based on operator feedback and focuses on productivity advantage and ease of use. The brush chipper features a centrifugal clutch system, 25 hp (18.6 kW) Kohler EFI engine, bottom feed stop bar and Vermeer-exclusive SmartFeed feed-sensing control system. The new member of the chippers line offers the compact size operators are looking for and the performance they want to achieve a job efficiently. Find A Dealer Request More Info

Features & Benefits

Centrifugal clutch engagement

The centrifugal clutch engagement prevents belt slippage when engaging the clutch which means fewer maintenance costs.

25 hp (18.6 kW) electronic fuel-injected (EFI) Kohler engine

The 25 hp (18.6 kW) electronic fuel-injected (EFI) Kohler engine performs well during cold-weather starts, has reduced occurrence of engine flooding and provides improved fuel economy over comparable carbureted gas engines.

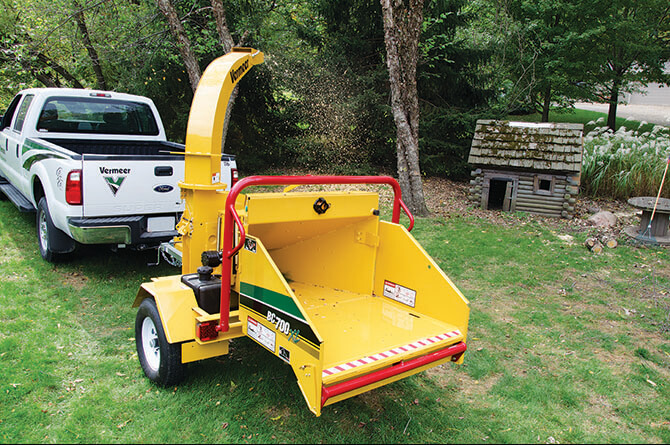

Large infeed opening

The large infeed opening makes feeding irregular material easier and decreases the amount of saw cuts needed prior to feeding the chipper.

SmartFeed system

The exclusive SmartFeed, patented feed-sensing control system from Vermeer helps increase operator productivity and reduces strain on vital engine parts, as engine rpm is monitored and feed rollers are controlled.

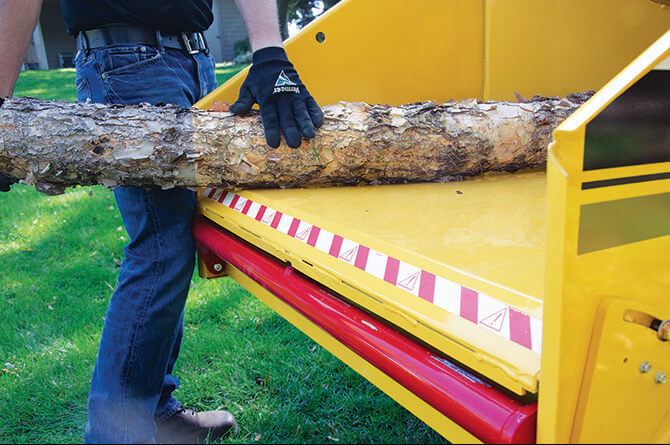

Bottom feed stop bar

A bottom feed stop bar is strategically located to make it possible for the operator's leg to strike the bar and shut off the feed mechanism either intentionally or automatically in an emergency situation.

Wide axle

The wide axle offers a wide footprint at the axle for side-to-side stability; additionally enhances transportability and visibility while backing up.

Specifications

Compare Models
  • General Dimensions and Weights

    • Length - Feed Table Up, Tongue In 113 in 287 cm
    • Length - Table Down, Tongue Extended 133 in 337.8 cm
    • Width 71 in 180.3 cm
    • Height 102 in 259.1 cm
    • Weight - Engine Option One 1800 lbs 816.5 kg
    • Tongue Weight - Engine Option One 180 lbs 81.6 kg
  • Engine Option One

    • Make and Model Kohler ECH740
    • Gross Horsepower (Maximum) 25 hp 18.6 kw
    • Torque (Max) 41.7 ft-lb 56.5 Nm
    • Fuel Tank Capacity 6 gal 22.7 L
    • Max Fuel Consumption 2.4 gph 9.1 lph
    • Fuel Type Gasoline
    • Air Cleaner Kohler HD 2-Stage Dry
    • Oil Filter Spin-on
    • Recommended Oil Kohler oil or API CH4/SJ
    • Oil Volume with Filter 2 qt 1.9 L
    • Maximum Angle of Continuous Operation 25 deg
    • Cooling Medium Oil/Air
    • Alternator 20A Charging
    • Clutch Type Centrifugal PTO
    • Clutch Drive Engagement Centrifugal
  • Feed System

    • Feed Roller Orientation Horizontal
    • Feed Roller Clamp Load 525 lbs 238.1 kg
    • Feed Roller Clamp Type Spring/Feed Roller Weight
    • Feed Roller Minimum Distance to Drum 4 in 10.2 cm
    • Feed Roller Dimension 10" Diameter
    • Weight of Feed Roller 100 lbs 45.4 kg
    • Motor Displacement 14
    • Motor Manufacturer White Hydraulics
    • Feed Speed 49.4 ft/min
    • Infeed Table Width 41.2 in 104.6 cm
    • Infeed Table Length 30.2 in 76.7 cm
    • Infeed Hopper Height 22.1 in 56.1 cm
    • Infeed Throat Capacity 6" x 8" (15.24 cm x 20.32 cm)
    • Pinch Point - Distance to End of Feed Table 65.4 in 166.1 cm
    • Distance from Feed Table to Ground 28.1 in 71.4 cm
  • Safety System

    • Bottom Feed Stop Bar Standard
    • Bottom Feed Stop Bar Diameter 2 in 5.1 cm
    • Bottom Feed Stop Bar Material Thickness 12" (30.48 cm)
    • Reset Method Dual green hold-to-run buttons
    • Four Position Feed Control Bar Standard
    • Diameter 2 in 5.1 cm
    • Material Thickness .1 in .3 cm
    • Positions Four position: (E-Stop), Forward, Stop, (Reverse)
    • Green Hold to Run Button Standard
  • Drum/Disc Cutting System

    • Material Capacity 6 in 15.2 cm
    • Width 8 in 20.3 cm
    • Thickness 1.3 in 3.2 cm
    • Diameter 23.9 in 60.7 cm
    • Speed 1748
    • Weight With Shaft 176 lbs 79.8 kg
    • Knife Thickness .6 in 1.6 cm
    • Material A8 Chipper Steel
    • Replaceable Threaded Knife Block Yes
    • Fixture Method Welded
    • Air Flow 5000 cfm
    • Bedknife Size 4" x 8.6"/(10.2 cm x 21.9 cm) hor; 4" x 5.8"/(10.2 cm x 14.6 cm) vert
    • Bedknife Material ASTM A572 Grade 50
  • Cutter Drive Components - Engine Option One

    • Bore 1.5 in 3.8 cm
    • Type Flange-mounted ball type, self-aligning
    • Manufacturer Linkbelt
    • Dynamic Capacity 5640 lbs 2558.3 kg
    • Static Capacity 4460 lbs 2023 kg
    • Belt Idler/Tensioner Spring-loaded adjustable Idler
    • Belt Type 2-band 5-V profile Aramid
  • Discharge System

    • Chute Height 97.2 in 246.8 cm
    • Bottom Thickness .1 in .3 cm
    • Top Thickness .1 in .3 cm
    • Side Wall Thickness .1 in .3 cm
    • Deflector Thickness .1 in .2 cm
    • Chute Rotation Angle 240 deg
    • Rotation Type Manual
    • Rotational Lock Standard Latch
  • Hydraulic System

    • Tank capacity 6.8 gal 25.7 L
    • Recommended Oil Type Vermeer VMF Gold
    • System Type Open center
    • Filtration Method Return flow filtration, 10 micron
    • Pump Flow at Maximum RPM 3.8 gpm 14.4 L/min
    • System relief pressure 2500 psi 172.4 bar
  • Electrical System

    • System Voltage 12 Volt
    • Battery Group 26, 400 CCA
    • Standard Gauges Hour meter
    • Switches Hold-to-run, sensitivity selector
    • Controller Vermeer ACS CB02
  • Chassis

    • Frame Description 3/16"/(.5 cm) ASTM A1011 steel
    • Hitch Type 2"/(5.1 cm) ball coupler
    • Fender Description .1"/(.3 cm) Steel bolt-on
    • Axle/Suspension 2000 lb/(907.2 kg) rubber torsion axle
    • Type - Option One Rubber Torsional
    • Manufacturer - Option One Dexter
    • Capacity - Option One 2000 lb/(907.2 kg)
    • Tires - Option One ST185/80D13 load range D
    • Wheels - Option One 13 x 5, bolt circle 5 on 4.5
    • Axle/Suspension - Option Two 2000lb/(907.2 kg) rubber torsion axle with electric brakes
    • Type - Option Two Rubber torsional, braked
    • Manufacturer - Option Two Dexter
    • Capacity - Option Two 2000 lb/(907.2 kg)
    • Brake Type Electric optional
    • Trailer Light Type LED
  • Other Options

    • Special Paint Available, Optional
    • Extended Warranty Available, Optional
    • Preventive Maintenance Available, Optional
