Ease of operation and compact design.

Find A Dealer Request More Info
The modified operator presence handle design is now manufactured with a harder exterior to improve wear and appearance. This user-friendly handle system provides additional capacitance sensing capability and is intended to help protect the operator.

Ease of operation and compact design.

The modified operator presence handle design is now manufactured with a harder exterior to improve wear and appearance. This user-friendly handle system provides additional capacitance sensing capability and is intended to help protect the operator. Find A Dealer Request More Info

Features & Benefits

Vermeer AutoSweep® system

AutoSweep monitors engine speed and automatically adjusts cutter wheel sweep rate.

Long tracks

Ground disturbance is minimized due to long tracks which provide lower ground pressure and improved stability.

Operator presence system

Control handle for the boom swing and boom raise/lower is equipped with operator presence capacitance-sensing handle. This system is intended to help protect the operator.

Smooth operation

The exclusive SmartSweep™ control system monitors engine load and provides continuous feedback, resulting in a smooth and consistent cutter wheel sweep rate.

Hydraulically-driven cutter wheel and ground drive

The elimination of belts or chain drives reduces service and maintenance.

Specifications

Compare Models
  • General Dimensions and Weights

    • Length 94 in 238.8 cm
    • Width 35 in 88.9 cm
    • Height 49 in 124.5 cm
    • Weight - Engine Option One 1550 lbs 703.1 kg
  • Engine - Option one

    • Make and Model Kohler ECH740
    • Number of Cylinders 2
    • Gross Horsepower (Maximum) 25 hp 18.6 kw
    • Torque (Max) 42 ft-lb 56.9 Nm
    • Fuel Tank Capacity 6.8 gal 25.7 L
    • Max Fuel Consumption 2.4 gph 9.1 lph
    • Fuel Type Gas
    • Air Cleaner 6 " (15.2 cm) 2-Stage dry
    • Oil Filter Spin-on
    • Recommended Oil Kohler oil or API CH4/SJ
    • Oil Volume with Filter 2 qt 1.9 L
    • Maximum Angle of Continuous Operation 25 deg
    • Cooling Medium Air/oil
  • Cutterwheel System

    • Cutterwheel Diameter without Teeth 16 in 40.6 cm
    • Cutterwheel Thickness .5 in 1.3 cm
    • Cutterwheel Speed 1110 rpm
    • Cutterwheel Straight Line Dimension 35.5 in 90.2 cm
    • Cutterwheel Cut Above Ground 25 in 63.5 cm
    • Cutterwheel Cut Below Ground 12 in 30.5 cm
    • Tooth Description Yellow Jacket Cutter System
    • Number of Teeth 16
    • Number of Indexes 2
    • Number of Pockets 16
    • Reversible Pockets Yes
    • Cutterwheel Guard Yes
    • Chip Containment 2.2 cu ft .1 cu m
  • Cutterwheel Drive Components

    • Lower Gearbox Hydraulic motor
  • Hydraulic System

    • Tank capacity 9 gal 34.1 L
    • Recommended Oil Type ISO 68
    • System Type Open loop
    • Filtration Method Inline return filter
    • Pump Flow at Maximum RPM 16 gpm 60.6 L/min
    • System relief pressure 2750 psi 189.6 bar
    • Flow Control Autosweep (option)
    • Directional Control Standard
    • Oil Cooler Yes. Fan-cooled
  • Electrical System

    • System Voltage 12
    • Battery 405
    • Standard Gauges Hour meter/tach
    • Switches Cutter wheel drive
    • Controller Yes
  • Chassis

    • Control Station Description Fixed-rear
  • Track Drive System

    • Track Type Rubber 7 " (17.8 cm) width
    • Track Width - Retracted 35 " (88.9 cm)
    • Track Width - Extended 35 " (88.9 cm)
    • Track Length on Ground 31.4 " (79.7 cm)
    • Type of Idler Cast
    • Number of Idlers 5
    • Track Drive Pump Type Hydrostatic
    • System Relief Pressure 2900 psi (200 bar)
    • Pump Flow at Maximum RPM 11.4 gpm (43.1 L/min)
    • Track Drive Motor Type Geroter
    • Track Brake Type Hydrostatic
    • High Speed Travel 3.2 mph 5.1 km/h
    • Ground Bearing Pressure - Soft Ground 3.4 psi 23.4 kPa
  • Other Options

    • Special Paint Per request
    • Extended Warranty Per request
    • Preventive Maintenance Per request

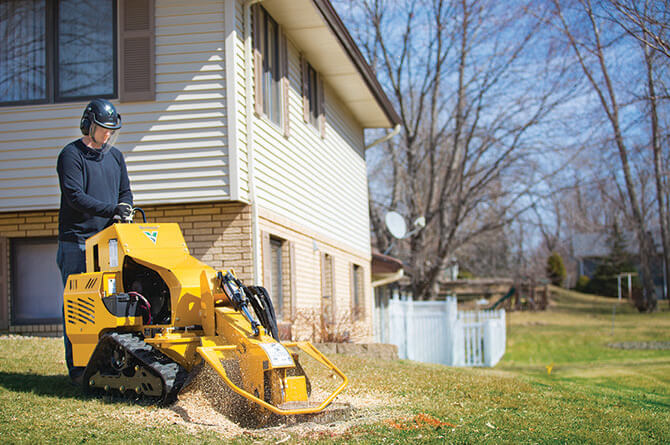

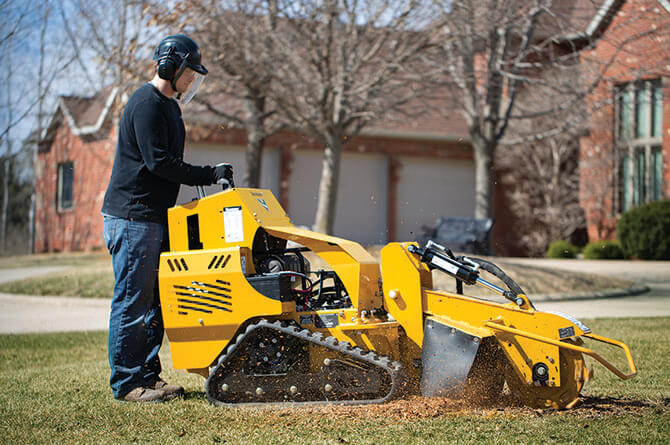

See it in action
