The smallest Vermeer reclaimer is available as a skid and trailer version.

Find A Dealer Request More Info

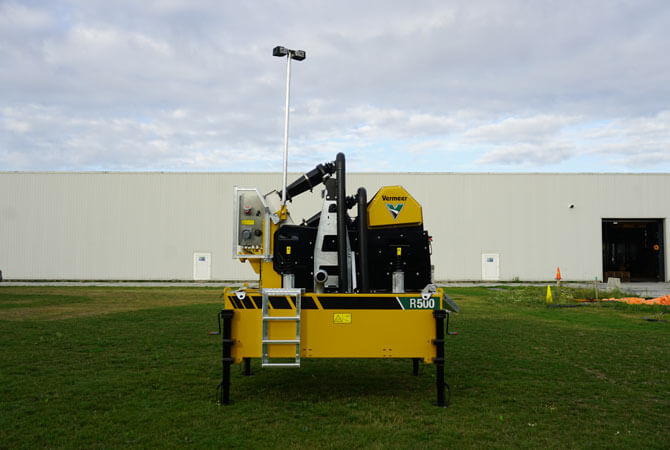

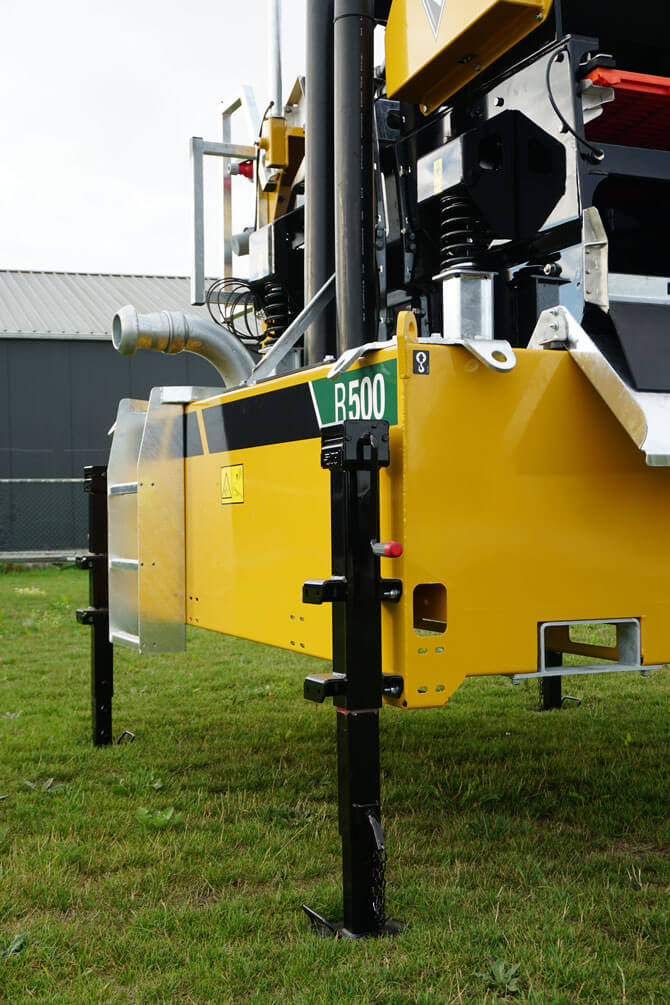

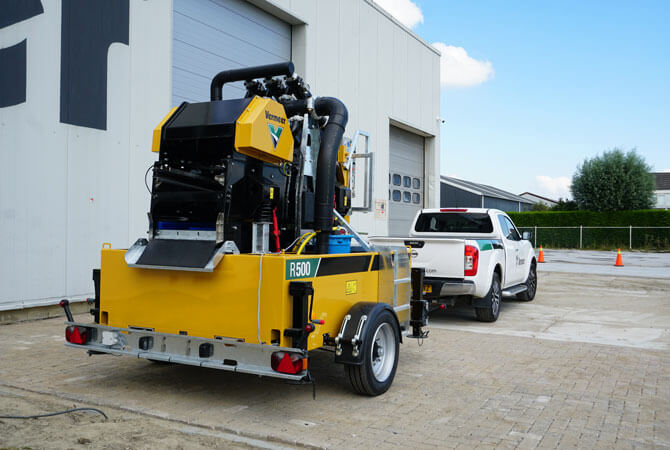

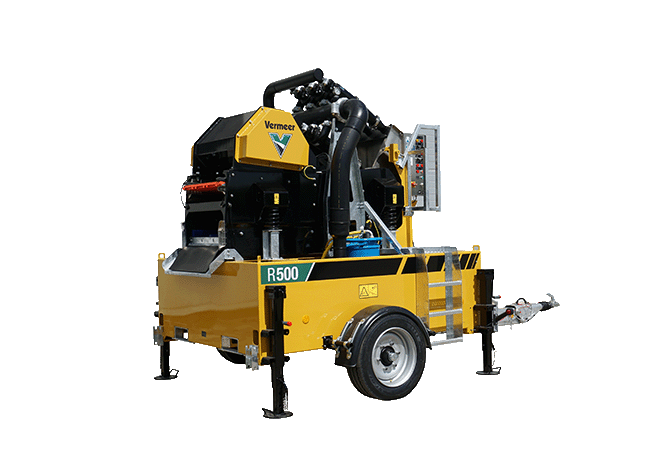

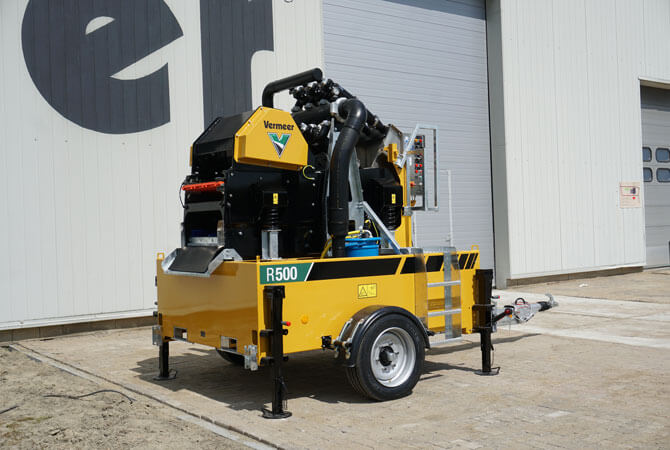

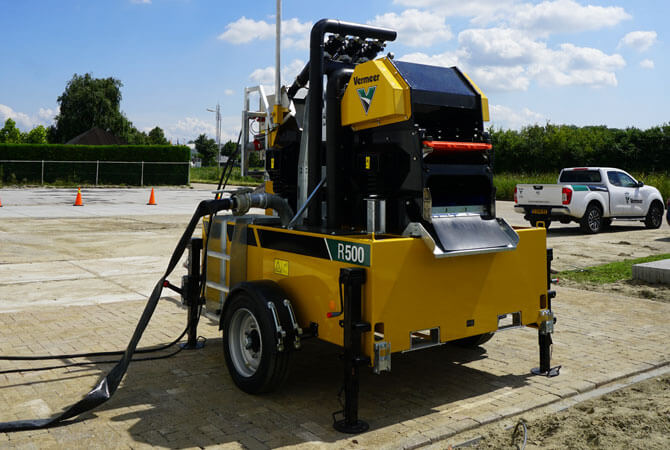

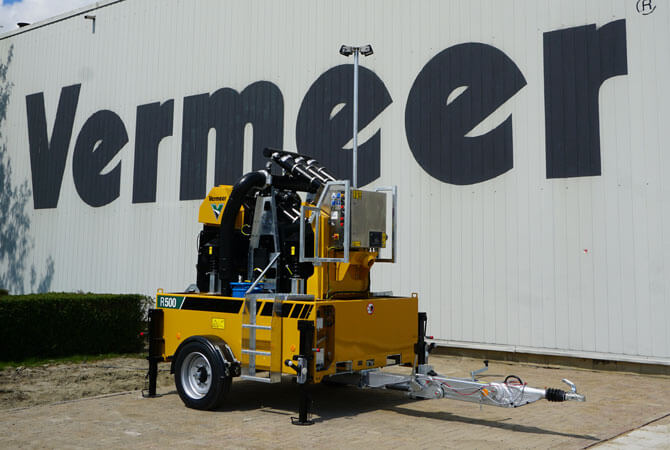

The R500 reclaimer is the smallest-sized reclaimer Vermeer offers and is available as a skid and trailer version. With a relatively low weight of 2.500 kg (5,511 lb) and a height-adjustable hitch, the R500 can be towed by a van or truck. The four heavy-duty pulldown jacks for stabilization will help for quick and convenient setup of the reclaimer.

The smallest Vermeer reclaimer is available as a skid and trailer version.

The R500 reclaimer is the smallest-sized reclaimer Vermeer offers and is available as a skid and trailer version. With a relatively low weight of 2.500 kg (5,511 lb) and a height-adjustable hitch, the R500 can be towed by a van or truck. The four heavy-duty pulldown jacks for stabilization will help for quick and convenient setup of the reclaimer. Find A Dealer Request More Info

Features & Benefits

Automated operation

There’s no need to manually control valves. The level switches in the reclaimer tank and the remote level-switch in the mixing tank, help prevent overflow throughout the fluid system setup and help reduce labor.

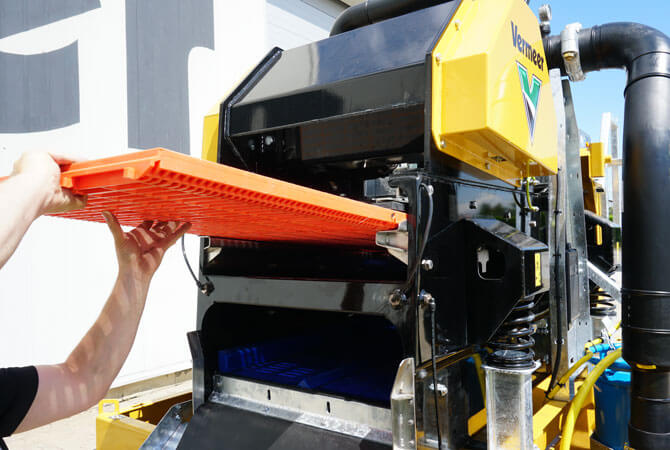

Quick-change screens

The primary screens are kept in place with an air-clamping system, powered by an onboard air compressor. This allows for ease of access and the ability to quickly change the screens.

Cleaning efficiency

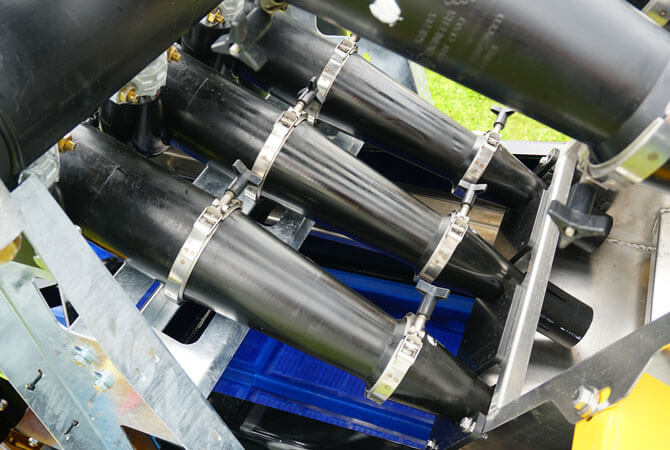

Premium cleaning performance is achieved through six 10.2-cm (4-in) long-body hydrocyclones in combination with a relatively large screen area.

Continuous performance

The heavyweight shaker deck delivers stable performance under variable processing volume. A high-capacity 11-kW (15-hp)pump is used for optimum circulation.

Durability and wear resistance

The use of high-quality, wear-resistant components maximizes the durability and life of the reclaimer.

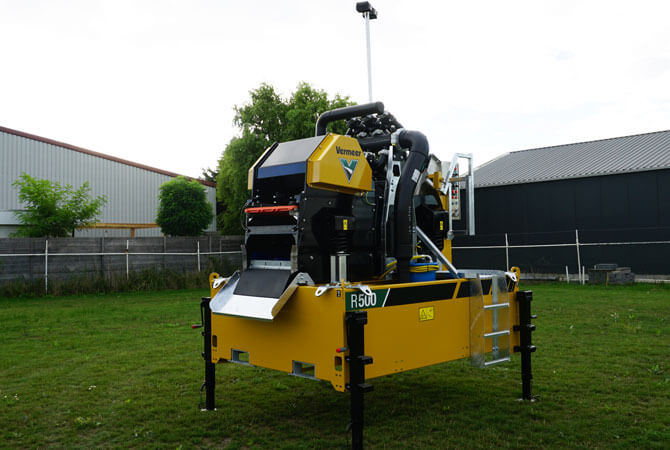

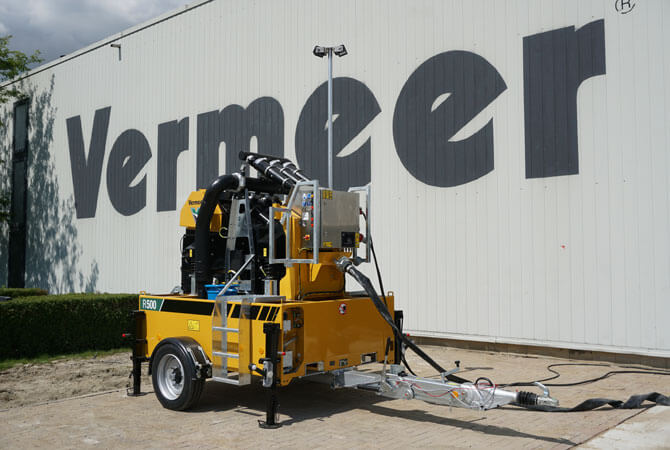

Available as skid or trailer

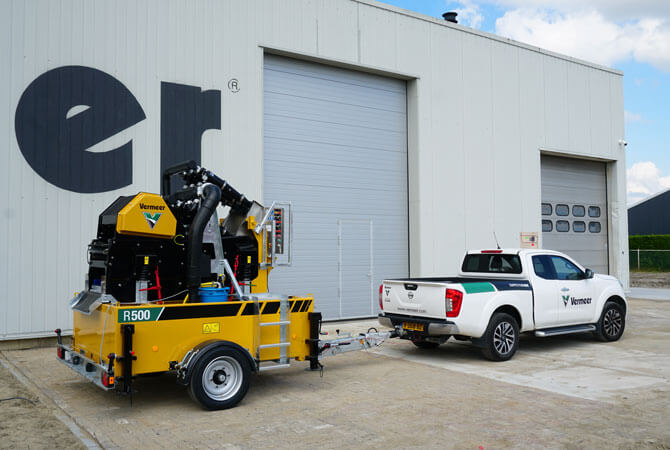

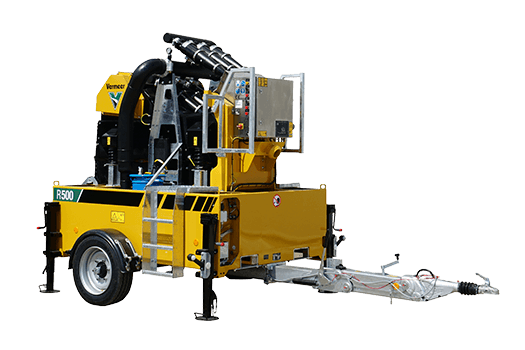

The R500 reclaimer is available as skid or trailer. The skid is prepared for forklift use, and the trailer comes equipped with a height-adjustable surge brake to adapt to a variety of towing vehicles.

Specifications

Compare Models
Show Metric
  • General Dimensions and Weights

    • Weight 5511 lbs 2499.7 kg
    • Gross Vehicle Weight Rating (GVWR) 5511 lbs 2499.7 kg
    • Length 16 ft 4.9 m
    • Width 8.2 ft 2.5 m
    • Height 9.2 ft 2.8 m
  • Frame

    • Type Single axle trailer
    • Suspension Torsion bar
    • Axles Knott
  • Tank Capacities

    • Maximum Capacity 600 gal 2271.2 L
    • Number of Tanks 1
  • Cleaning System

    • Shaker Motion Linear
    • Shaker Type Double deck
    • Number of Shakers 1
    • Shaker Bed Area - each 23.4 ft² (2.18 m²)
    • Number of Screens per Shaker 3
    • Screen Dimension 24 in x 24 in (61 cm x 61 cm)
    • Cleaning Capacity (First Cut) 130 gpm 492.1 L/min
    • Desilter Quantity/Size 6 hydrocyclones
  • Circuit Dimensions

    • Charge pump 5 hp (3.7 kW)
    • Desilter pump 15 hp (11 kW)
  • Companion Features

    • Genset 40 kVA, 3-phase 50 Hz, 400 V
    • Pit pump 5 hp (3.7 kW)
    • Trailer Single axle
  • Features

    • Ancillary Electrical System 24 V
    • Working lights Dual LED lamp post
    • Auto-pit pump Standard
