Optimize your horizontal directional drill’s performance with the MX125.

Find A Dealer Request More Info

Designed for small-diameter, short-distance horizontal directional drilling jobs, the MX125 is powered by a 5.5-hp (4.1-kW) Honda gas engine or a 6.7-hp (5-kW) Hatz diesel engine. It comes with your choice of a 300-gal or 500-gal (1135.6-L or 1892.7-L) tank.

Optimize your horizontal directional drill’s performance with the MX125.

Designed for small-diameter, short-distance horizontal directional drilling jobs, the MX125 is powered by a 5.5-hp (4.1-kW) Honda gas engine or a 6.7-hp (5-kW) Hatz diesel engine. It comes with your choice of a 300-gal or 500-gal (1135.6-L or 1892.7-L) tank.

Find A Dealer Request More Info

Features & Benefits

Modular design

Allows the power pack to be mounted on either end of the tank or trailer, enhancing operator accessibility to the unit.

Keep it mixed

A hopper with a round design and cone-shaped bottom helps prevent drilling fluid additives from settling.

Slim fit

The MX125 [500-gal (1892.7-L) option only] features a narrow profile for easy side-by-side trailer transport with a HDD.

Start your engines

The MX125 is available with either a 5.5-hp (4.1-kW) Honda gas engine or 6.7-hp (5-kW) Hatz diesel engine.

Specifications

Compare Models
  • Operational

    • Mixing Action Venturi / Recirculation
    • Integrated Mixing Hopper Yes
    • Straining System (Makeup Water) Yes
    • Straining System (Outlet) Yes
  • Engine

    • Gross Horsepower 6.7 hp 5 kw
    • Fuel Capacity 5 gal 18.9 L
  • 500 Gallon (1892.7 L) Tank Option

    • Length 106 in 269.2 cm
    • Width 28.5 in 72.4 cm
    • Height 69.5 in 176.5 cm
    • Weight 687 lbs 311.6 kg
    • Mixing Jets 4 in-line eductor nozzles
  • 300 Gallon (1135.6 L) Tank Option

    • Length 74 in 188 cm
    • Width 38 in 96.5 cm
    • Height 52 in 132.1 cm
    • Weight 600 lbs 272.2 kg
    • Mixing Jets 3 in-line eductor nozzles
  • Power Pack

    • Length 36 in 91.4 cm
    • Width 30 in 76.2 cm
    • Height 44.5 in 113 cm
    • Weight 340 lbs 154.2 kg
    • Diesel Engine Option Hatz
    • Diesel Engine Option Horsepower 6.7 hp 5 kw
    • Gas Engine Option Honda
    • Gas Engine Option Horsepower 5.5 hp 4.1 kw
    • Gross Horsepower 6.7 hp 5 kw
    • Fuel Capacity 5 gal 18.9 L
    • Pump Type Monarch 3" (7.62 cm) grease seal pump
    • Mixing Action Ventrui/recirculation
    • Integrated Mixing Hopper Yes
    • Anti-Freeze Capacity 5 hp 3.7 kw
    • Straining System (Makeup Water) Yes
    • Straining System (Outlet) Yes

See it in action

Talk to a Vermeer Dealer Today

From helping you select the right equipment, to training operators, to providing the parts and service you need on a jobsite or in the field, Vermeer dealers will give you the localized support you're looking for.

* Required Field
*
*
*
*
*
*
*
*
I have read and agree to this notice of personal information processing. *
I am 18 years or older. *
I confirm I have read and agree to the Vermeer Privacy Policy, terms and conditions. *
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

More from your machine

Test local rock samples

Test local rock samples

Test your local rock's hardness, density, abrasiveness and how it may respond when being drilled.

Learn more
Purchase with confidence

Purchase with confidence

Vermeer Confidence Plus® asset protection program provides the ongoing service you need to assist in protecting the productivity and value of your equipment.

Learn more

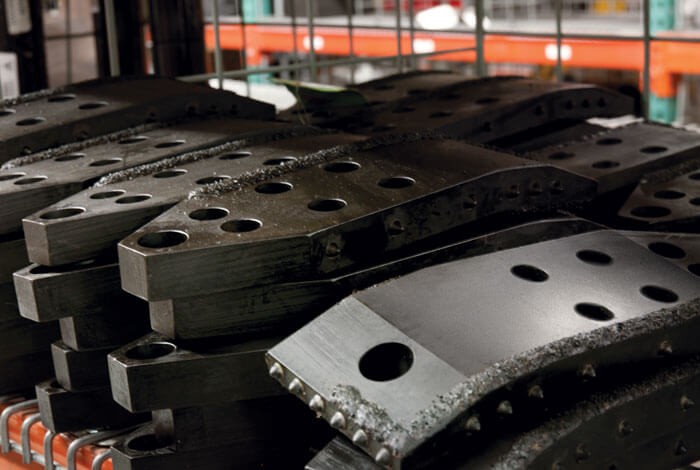

24/7 HDD tooling purchasing
