The BC230 is built tough to support your daily operations and surpass expectations.

Find A Dealer Request More Info

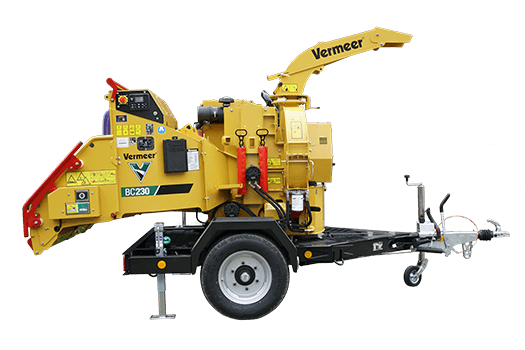

The BC230 brush chipper combines a 55-kW (74-hp) Stage V Caterpillar diesel engine with a 23-cm x 35.5-cm (9-in x 14-in) infeed opening to provide superior feeding performance for dealing with heavily branched material. The twin horizontal feed rollers with offset 40-cm (15.7-in) diameter upper roller allows large short lengths to be fed without kickup that reduces the workload and effort for the operator.

The BC230 is built tough to support your daily operations and surpass expectations.

The BC230 brush chipper combines a 55-kW (74-hp) Stage V Caterpillar diesel engine with a 23-cm x 35.5-cm (9-in x 14-in) infeed opening to provide superior feeding performance for dealing with heavily branched material. The twin horizontal feed rollers with offset 40-cm (15.7-in) diameter upper roller allows large short lengths to be fed without kickup that reduces the workload and effort for the operator.

Find A Dealer Request More Info

Features & Benefits

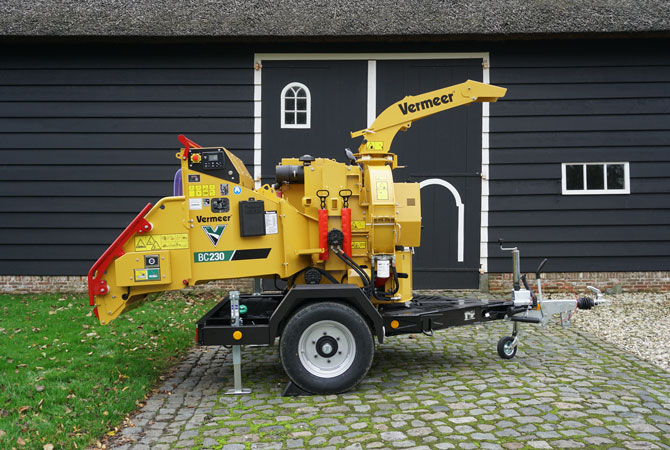

Convenient turn-table

Allows the chipper infeed to be rotated into seven positions to face the material for ease of feeding and convenience when working along the roadside. An optional height-adjustable surge brake is available for the BC230.

EcoIdle™ engine control system

When the EcoIdle system is selected by the operator, the engine speed automatically lowers to a preset rpm after one minute or five minutes of inactivity to help reduce fuel consumption when not chipping material. This idling can help reduce emissions and noise.

SmartFeed

The SmartFeed system monitors engine rpm and automatically stops and reverses the feed rollers to maximize production. This system also senses feed roller jams and manipulates the material automatically to reduce the need for manual control bar use.

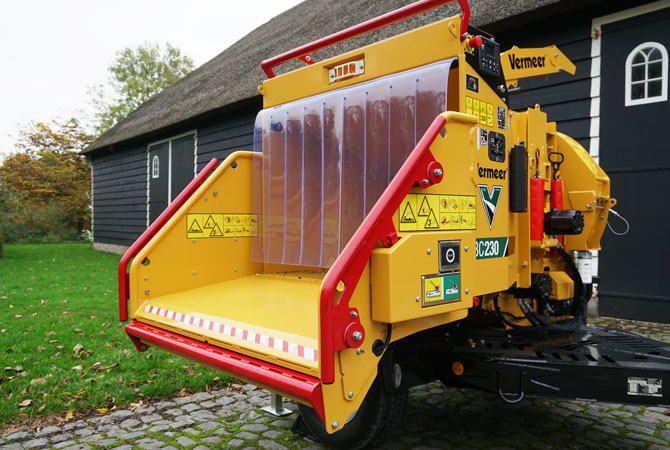

Twin horizontal feed rollers

A 23-cm x 35.5-cm infeed opening fed by oversized horizontal offset feed rollers helps allow material at maximum capacity to be efficiently fed to the chipper.

Powerful performance

The 55-kW (74-hp) Stage V compliant Caterpillar diesel engine allows you not only to comply with emissions requirements but also gives you enough horsepower to meet your jobsite needs.

The Vermeer 3-year warranty rider

The BC230 comes with a 3-year warranty rider with an option to extend up to 5 years/5,000 hours. It’s the smart way to protect your investment.

Specifications

Compare Models
Show Metric
  • General Dimensions and Weights

    • Length - Feed Table Up, Tongue In 151 in 383.5 cm
    • Length - Table Down, Tongue Extended 165 in 419.1 cm
    • Width 74 in 188 cm
    • Height 103 in 261.6 cm
    • Weight - Engine Option One 4740 lbs 2150 kg
    • Tongue Weight - Engine Option One 220 lbs 99.8 kg
    • Sound Power 126 dB(A)
  • Engine - Option one

  • Feed System

  • Safety System

  • Drum/Disc Cutting System

  • Cutter Drive Components - Engine Option One

  • Discharge System

  • Hydraulic System

  • Electrical System

  • Chassis

  • Other Options
